CY545 Pinouts

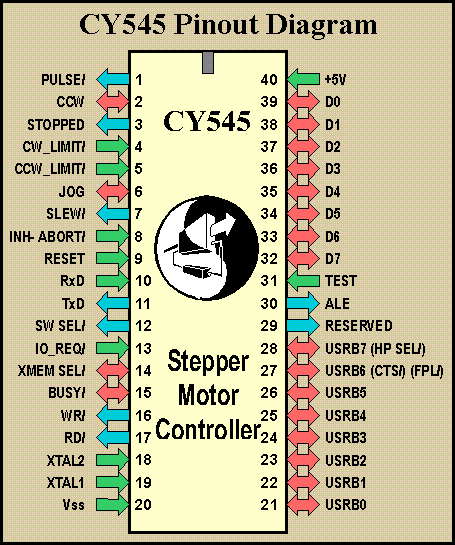

CY545B DIP Pinout

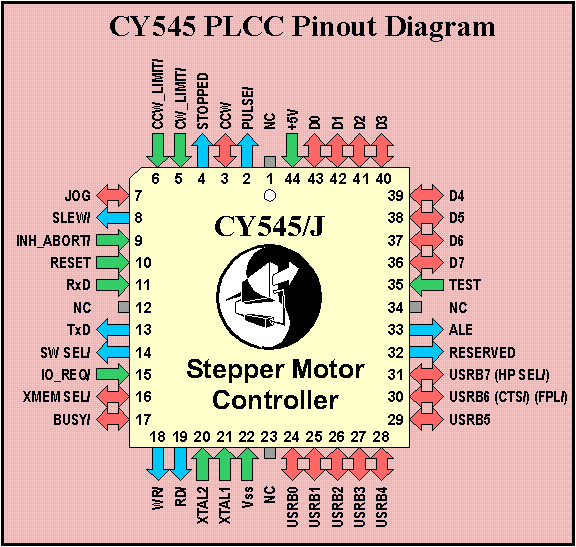

CY545B/J PLCC Pinout

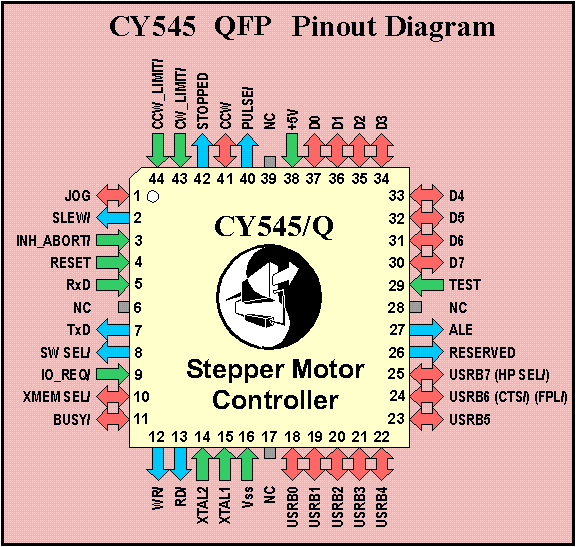

CY545B/Q QFP Pinout*

[CY545 DIP Pinout Diagram] Zoom In [CY545 PLCC Pinout Diagram] Zoom In [CY545 QFP Pinout Diagram] Zoom In


CY545B
Dip
Pin#
CY545B/J
PLCC
Pin#
CY545B/Q
QFP*
Pin#
Pin Name I/O Description
- 1 39 NC   no internal connection
1 2 40 Pulse/ O Step pulse output
2 3 41 CCW I/O Step direction
3 4 42 Stopped O Motion status, Lo=stepping
4 5 43 CW Limit/ I Clockwise step limit reached
5 6 44 CCW Limit/ I Counter Clockwise step limit reached
6 7 1 Jog I/O Manual stepping control
7 8 2 Slew/ I/O Slew indicator signal
8 9 3 Inhibit_Abort/ I External motion control
9 10 4 Reset I CY545 hardware reset when high
10 11 5 RxD I Received Serial Data line
- 12 6 NC   no internal connection
11 13 7 TxD O Transmitted Serial Data Line
12 14 8 Sw_Select/ O Low when reading Switches
13 15 9 IO Request/ I Parallel handshake input; else Serial
baud select: Lo=300, Hi=2400, Z=9600
14 16 10 Xmem Sel/ I/O External local memory select
15 17 11 Busy/ I/O Parallel handshake acknowledgement
16 18 12 WR/ O Parallel Write Strobe
17 19 13 RD/ O Parallel Read Strobe
18 20 14 Xtal2 I Crystal oscillator connection
19 21 15 Xtal1 I Crystal oscillator connection
20 22 16 Vss I Ground connection for CY545
- 23 17 NC   no internal connection
21 24 18 UserBit0 I/O User selectable function, bit 0
22 25 19 UserBit1 I/O User selectable function, bit 1
23 26 20 UserBit2 I/O User selectable function, bit 2
24 27 21 UserBit3 I/O User selectable function, bit 3
25 28 22 UserBit4 I/O User selectable function, bit 4
26 29 23 UserBit5 I/O User selectable function, bit 5
27 30 24 UserBit6 or
FPL/ or CTS/
I/OUser selectable function, bit 6
or FPL/ or CTS/
28 31 25 UserBit7
or HP_Sel/
I/O User selectable function, bit 7
or HP_Sel/
29 32 26 Reserved O do not connect
30 33 27 ALE O Address Latch enable
- 34 28 NC   no internal connection
31 35 27 Test I +5v
32 36 30 D 7 I/O Parallel Data Bus bit 7 (MSB)
33 37 31 D 6 I/O Parallel Data Bus bit 6
34 38 32 D 5 I/O Parallel Data Bus bit 5
35 39 33 D 4 I/O Parallel Data Bus bit 4
36 40 34 D 3 I/O Parallel Data Bus bit 3
37 41 35 D 2 I/O Parallel Data Bus bit 2
38 42 36 D 1 I/O Parallel Data Bus bit 1
39 43 37 D 0 I/O Parallel Data Bus bit 0 (LSB)
40 44 38 Vcc (+ 5V) I +5 volt power supply

* QFP Notes:
- While the numbering scheme of the QFP pinout differs from the PLCC, the physical location of functional pins will be identical on both packages.
- The QFP package is currently only available in 1000 quantity minimums.
